ETOPO1 Surface Topography

Description: A grid of surface topography originally at 10 arc-min resolution.

Dataset:

Uieda, Leonardo. “Fatiando a Terra Data: Earth - Topography Grid at 10 Arc-Minute Resolution.” Zenodo, January 20, 2022. https://doi.org/10.5281/zenodo.5882203.

Associated paper:

“ETOPO1 1 Arc-Minute Global Relief Model: Procedures, Data Sources and Analysis.” National Geophysical Data Center, NOAA, 2009. https://doi.org/10.7289/V5C8276M.

%%capture
%load_ext autoreload
%autoreload 2

from polartoolkit import fetch, maps, utils

data = fetch.etopo(
    hemisphere="north",
    # available options
    # region,
    # spacing,
    # registration ("g" for gridline or "p" for pixel),
)
data

100%|█████████████████████████████████████| 2.75M/2.75M [00:00<00:00, 2.12GB/s]
grdproject [WARNING]: x_inc does not divide 180; geographic boundary condition changed to natural.
grdsample [WARNING]: Output sampling interval in x exceeds input interval and may lead to aliasing.
grdsample [WARNING]: Output sampling interval in y exceeds input interval and may lead to aliasing.

<xarray.DataArray 'z' (y: 1401, x: 1401)> Size: 8MB
array([[  487.47034,   479.30872,   468.50928, ...,   152.74712,
          149.7177 ,   147.28014],
       [  465.51474,   455.33734,   441.82626, ...,   152.08801,
          149.05899,   146.61932],
       [  433.47925,   420.5988 ,   404.867  , ...,   149.21797,
          146.06398,   143.39584],
       ...,
       [-5456.4116 , -5441.6426 , -5427.819  , ...,  1273.1031 ,
         1233.5148 ,  1186.6128 ],
       [-5469.238  , -5458.661  , -5453.337  , ...,  1274.0212 ,
         1239.1852 ,  1194.8062 ],
       [-5484.5674 , -5477.1743 , -5475.3423 , ...,  1267.429  ,
         1235.4717 ,  1194.9996 ]], shape=(1401, 1401), dtype=float32)
Coordinates:
  * y        (y) float64 11kB -3.5e+06 -3.495e+06 ... 3.495e+06 3.5e+06
  * x        (x) float64 11kB -3.5e+06 -3.495e+06 ... 3.495e+06 3.5e+06
Attributes:
    Conventions:   CF-1.7
    title:
    history:       gmt grdsample @GMTAPI@-S-I-G-M-G-N-000000 -G@GMTAPI@-S-O-G...
    description:
    actual_range:  [-7265.75048828  3226.35986328]
    long_name:     z

xarray.DataArray

'z'

• y: 1401
• x: 1401

• 487.5 479.3 468.5 454.9 ... 1.294e+03 1.267e+03 1.235e+03 1.195e+03

  array([[  487.47034,   479.30872,   468.50928, ...,   152.74712,
            149.7177 ,   147.28014],
         [  465.51474,   455.33734,   441.82626, ...,   152.08801,
            149.05899,   146.61932],
         [  433.47925,   420.5988 ,   404.867  , ...,   149.21797,
            146.06398,   143.39584],
         ...,
         [-5456.4116 , -5441.6426 , -5427.819  , ...,  1273.1031 ,
           1233.5148 ,  1186.6128 ],
         [-5469.238  , -5458.661  , -5453.337  , ...,  1274.0212 ,
           1239.1852 ,  1194.8062 ],
         [-5484.5674 , -5477.1743 , -5475.3423 , ...,  1267.429  ,
           1235.4717 ,  1194.9996 ]], shape=(1401, 1401), dtype=float32)

• Coordinates: (2)
  • y
    (y)
    float64
    -3.5e+06 -3.495e+06 ... 3.5e+06

    long_name :

    y

    axis :

    Y

    actual_range :

    [-3500000. 3500000.]

    array([-3500000., -3495000., -3490000., ...,  3490000.,  3495000.,  3500000.],
          shape=(1401,))

  • x
    (x)
    float64
    -3.5e+06 -3.495e+06 ... 3.5e+06

    long_name :

    x

    axis :

    X

    actual_range :

    [-3500000. 3500000.]

    array([-3500000., -3495000., -3490000., ...,  3490000.,  3495000.,  3500000.],
          shape=(1401,))

• Indexes: (2)
  • y
    PandasIndex

    PandasIndex(Index([-3500000.0, -3495000.0, -3490000.0, -3485000.0, -3480000.0, -3475000.0,
           -3470000.0, -3465000.0, -3460000.0, -3455000.0,
           ...
            3455000.0,  3460000.0,  3465000.0,  3470000.0,  3475000.0,  3480000.0,
            3485000.0,  3490000.0,  3495000.0,  3500000.0],
          dtype='float64', name='y', length=1401))

  • x
    PandasIndex

    PandasIndex(Index([-3500000.0, -3495000.0, -3490000.0, -3485000.0, -3480000.0, -3475000.0,
           -3470000.0, -3465000.0, -3460000.0, -3455000.0,
           ...
            3455000.0,  3460000.0,  3465000.0,  3470000.0,  3475000.0,  3480000.0,
            3485000.0,  3490000.0,  3495000.0,  3500000.0],
          dtype='float64', name='x', length=1401))

• Attributes: (6)

  Conventions :

  CF-1.7

  title :

  history :

  gmt grdsample @GMTAPI@-S-I-G-M-G-N-000000 -G@GMTAPI@-S-O-G-G-G-Y-000001 -I5000.0 -R-3500000.0/3500000.0/-3500000.0/3500000.0

  description :

  actual_range :

  [-7265.75048828 3226.35986328]

  long_name :

  z

_ = utils.get_grid_info(data, print_info=True)

grid spacing: 5000.0 m
grid region: (-3500000.0, 3500000.0, -3500000.0, 3500000.0)
grid zmin: -7265.75048828
grid zmax: 3226.35986328
grid registration: g

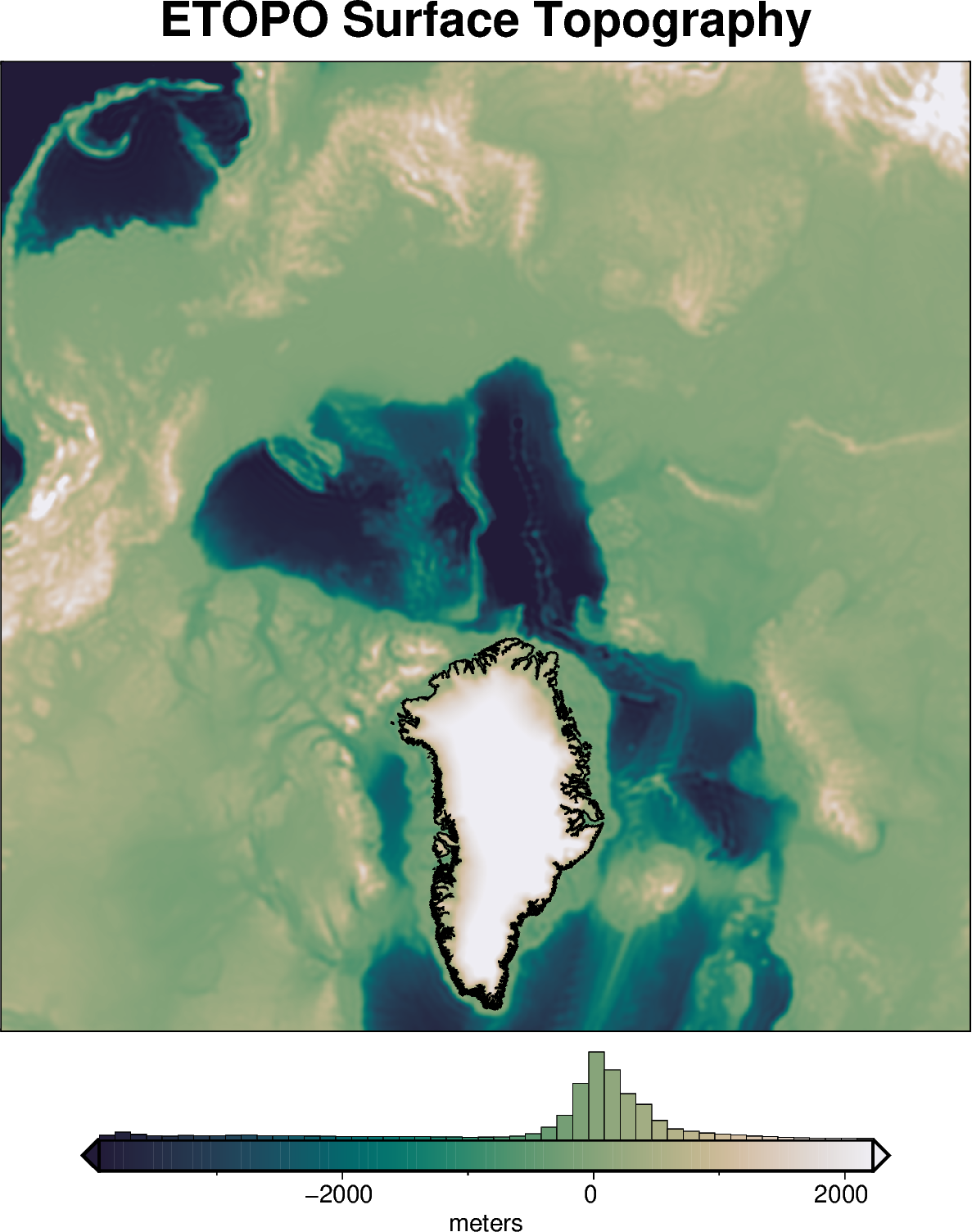

fig = maps.plot_grd(
    data,
    title="ETOPO Surface Topography",
    coast=True,
    cbar_label="meters",
    hist=True,
    robust=True,
    cmap="rain",
    reverse_cpt=True,
    hemisphere="north",
)

fig.show(dpi=200)

100%|██████████████████████████████████████| 1.64M/1.64M [00:00<00:00, 766MB/s]
