IBCSO v2 surface and bed elevation#
Description: International Bathymetric Chart of the Southern Ocean Version 2 gridded data.
Dataset:
Dorschel, Boris, Laura Hehemann, Sacha Viquerat, Fynn Warnke, Simon Dreutter, Yvonne Schulze Tenberge, Daniela Accettella, et al. “The International Bathymetric Chart of the Southern Ocean Version 2 (IBCSO V2).” PANGAEA, 2022. https://doi.org/10.1594/PANGAEA.937574.
Associated paper:
Dorschel, Boris, Laura Hehemann, Sacha Viquerat, Fynn Warnke, Simon Dreutter, Yvonne Schulze Tenberge, Daniela Accettella, et al. “The International Bathymetric Chart of the Southern Ocean Version 2.” Scientific Data 9, no. 1 (December 2022): 275. https://doi.org/10.1038/s41597-022-01366-7.
[1]:
%%capture
%load_ext autoreload
%autoreload 2
from polartoolkit import fetch, maps, utils
[2]:
layer_names = ["surface", "bed"]
grids = []
for name in layer_names:
data = fetch.ibcso(
layer=name,
# available options
spacing=5e3, # if >=5km, will use preprocessed grid
# region,
# registration, # "g" for gridline or "p" for pixel
# reference, # "geoid" or "ellipsoid"
)
grids.append(data)
print(f"Info for {name}")
_ = utils.get_grid_info(data, print_info=True)
print("##########")
/home/sungw937/miniforge3/envs/polartoolkit/lib/python3.12/site-packages/pooch/core.py:251: UserWarning: Resampling IBCSO data to 5km resolution, this may take a while!
return processor(str(full_path), action, None)
/home/sungw937/miniforge3/envs/polartoolkit/lib/python3.12/site-packages/zarr/api/asynchronous.py:244: ZarrUserWarning: Consolidated metadata is currently not part in the Zarr format 3 specification. It may not be supported by other zarr implementations and may change in the future.
warnings.warn(
Info for surface
grid spacing: 5000.0 m
grid region: (-3500000.0, 3500000.0, -3500000.0, 3500000.0)
grid zmin: -8378.40429688
grid zmax: 4519.96826172
grid registration: g
##########
/home/sungw937/miniforge3/envs/polartoolkit/lib/python3.12/site-packages/pooch/core.py:251: UserWarning: Resampling IBCSO data to 5km resolution, this may take a while!
return processor(str(full_path), action, None)
/home/sungw937/miniforge3/envs/polartoolkit/lib/python3.12/site-packages/zarr/api/asynchronous.py:244: ZarrUserWarning: Consolidated metadata is currently not part in the Zarr format 3 specification. It may not be supported by other zarr implementations and may change in the future.
warnings.warn(
Info for bed
grid spacing: 5000.0 m
grid region: (-3500000.0, 3500000.0, -3500000.0, 3500000.0)
grid zmin: -8378.40429688
grid zmax: 4515.13574219
grid registration: g
##########
[3]:

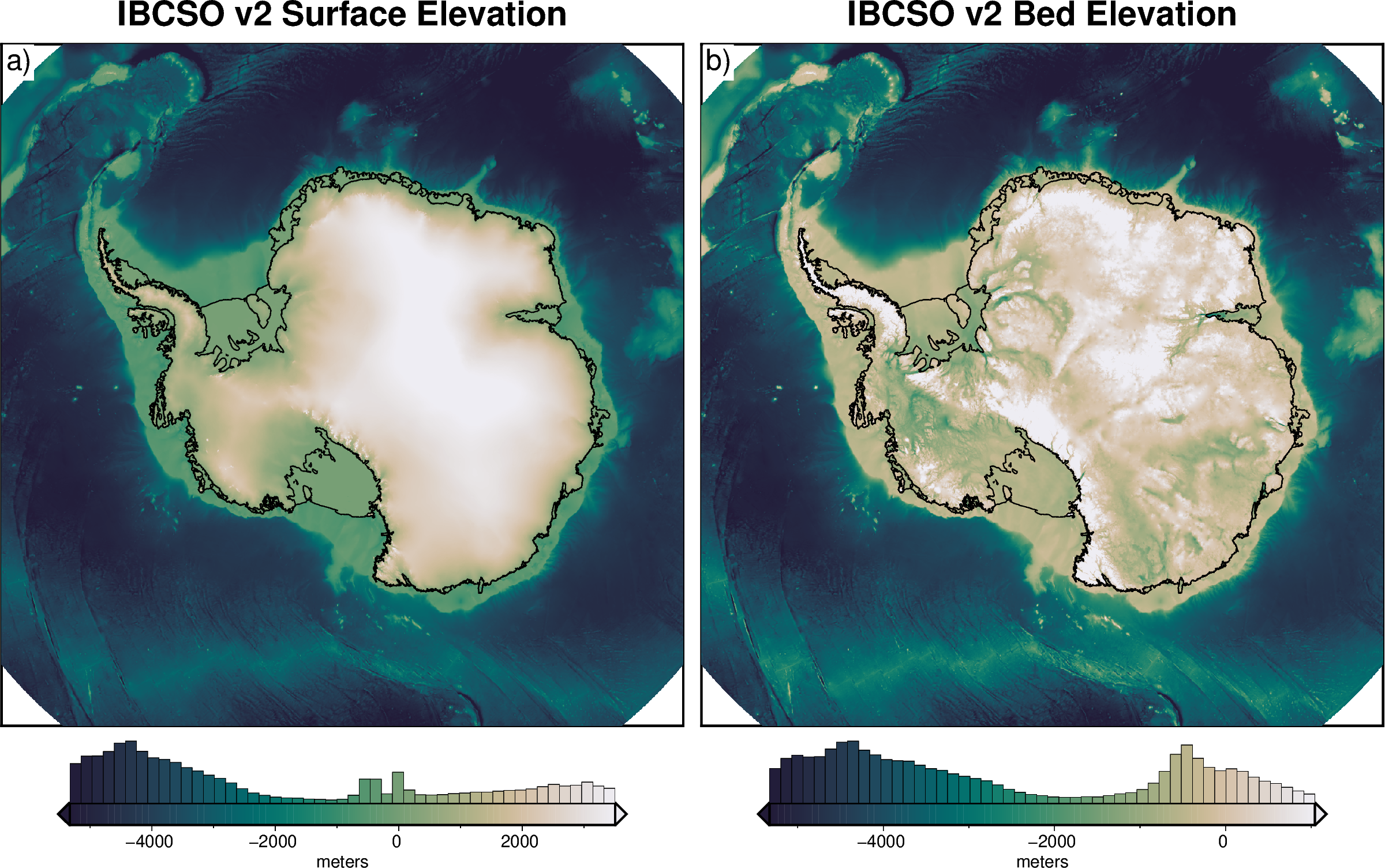

fig = maps.subplots(
grids,
titles=[
"IBCSO v2 Surface Elevation",
"IBCSO v2 Bed Elevation",
],
coast=True,
cbar_label="meters",
hist=True,
robust=True,
cmap="rain",
reverse_cpt=True,
hemisphere="south",
)
fig.show(dpi=200)
[ ]:
