Masking grids

Masking grids#

[1]:

import os

import geopandas as gpd

import polartoolkit as ptk

[2]:

# set default to northern hemisphere for this notebook
os.environ["POLARTOOLKIT_HEMISPHERE"] = "north"

[3]:

# fetch a grid
grid = ptk.fetch.etopo(
    layer="surface",
    region=ptk.regions.greenland,
)

Mask with a shapefile#

[4]:

# fetch a shapefile
shapefile = ptk.fetch.groundingline(version="BAS")

# load the shapefile
groundingline = gpd.read_file(shapefile)

[5]:

# mask the inside region
masked_inside = ptk.mask_from_shapefile(
    shapefile=groundingline,
    grid=grid,
    masked=True,
)

# mask the outside region
masked_outside = ptk.mask_from_shapefile(
    shapefile=groundingline,
    grid=grid,
    masked=True,
    invert=False,
)

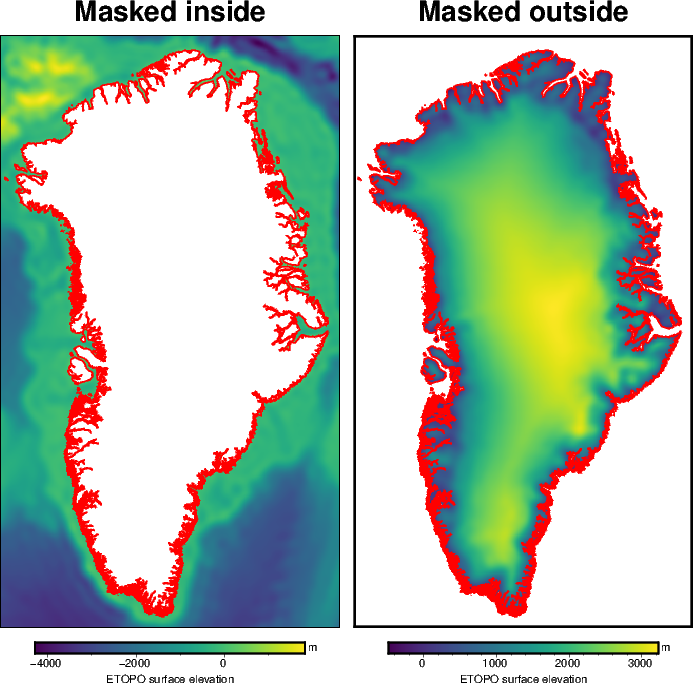

# plot the inside-masked grid
fig = ptk.plot_grid(
    masked_inside,
    title="Masked inside",
    cbar_label="ETOPO surface elevation",
    cbar_unit="m",
)
# plot the shapefile
fig.plot(groundingline, pen=".8p,red")

# plot the outside-masked grid
fig = ptk.plot_grid(
    masked_outside,
    title="Masked outside",
    cbar_label="ETOPO surface elevation",
    cbar_unit="m",
    fig=fig,
    origin_shift="x",
)
# plot the shapefile
fig.plot(groundingline, pen=".8p,red")


# show the plot
fig.show(dpi=100)
../_images/gallery_masking_and_subsetting_data_6_0.png

Interactively mask#

[6]:

polygon = ptk.draw_region()

[9]:

polygon

[9]:

[[[-42.378063, 72.363926],
  [-46.968767, 71.98377],
  [-47.5952, 70.151241],
  [-47.216462, 69.202262],
  [-45, 68.85142],
  [-41.05653, 68.527433],
  [-39.970926, 68.88165],
  [-38.361365, 69.7628],
  [-40.049297, 70.467213],
  [-41.377801, 71.016679],
  [-41.405596, 71.460268],
  [-41.025837, 72.136598]]]

[10]:

masked_outside = ptk.mask_from_polygon(
    polygon,
    grid=grid,
)
masked_inside = ptk.mask_from_polygon(
    polygon,
    grid=grid,
    invert=True,
)

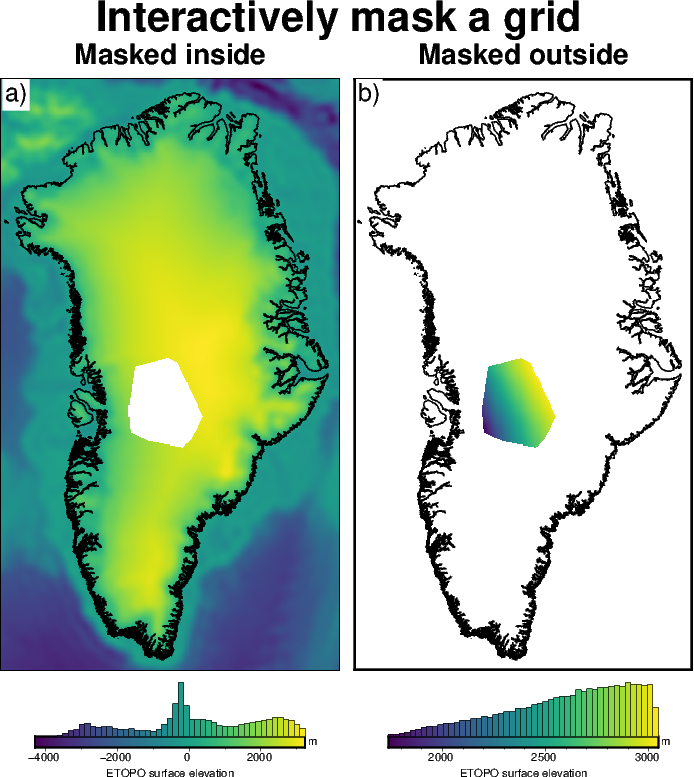

# show results in a plot
fig = ptk.subplots(
    [masked_inside, masked_outside],
    coast=True,
    inset=False,
    fig_title="Interactively mask a grid",
    titles=["Masked inside", "Masked outside"],
    cbar_label="ETOPO surface elevation",
    cbar_unit="m",
    hist=True,
)

fig.show(dpi=100)
../_images/gallery_masking_and_subsetting_data_10_0.png

Using polygons / shapefiles in other functions#

Shapefiles or interactively drawn polygons can be passed to several other functions as inputs. A few of these options are shown below.

Get min / max values only within mask#

[11]:

# get min and max of the full grid
min_max = ptk.get_min_max(grid)

print(f"full grid min / max: {min_max[0]} / {min_max[1]}")

full grid min / max: -4278.2353515625 / 3226.35986328125

[12]:

# Convert the polygon to a shapefile
shapefile = ptk.polygon_to_shapefile(polygon)
shapefile

[12]:
geometry
0 POLYGON ((88064.01 -1923071.962, -67583.991 -1...

Get the min and max of just the part of the grid inside the polygon.

[13]:

min_max = ptk.get_min_max(grid, shapefile=shapefile)

print(f"full grid min / max: {min_max[0]} / {min_max[1]}")

full grid min / max: 1736.755126953125 / 3034.247314453125

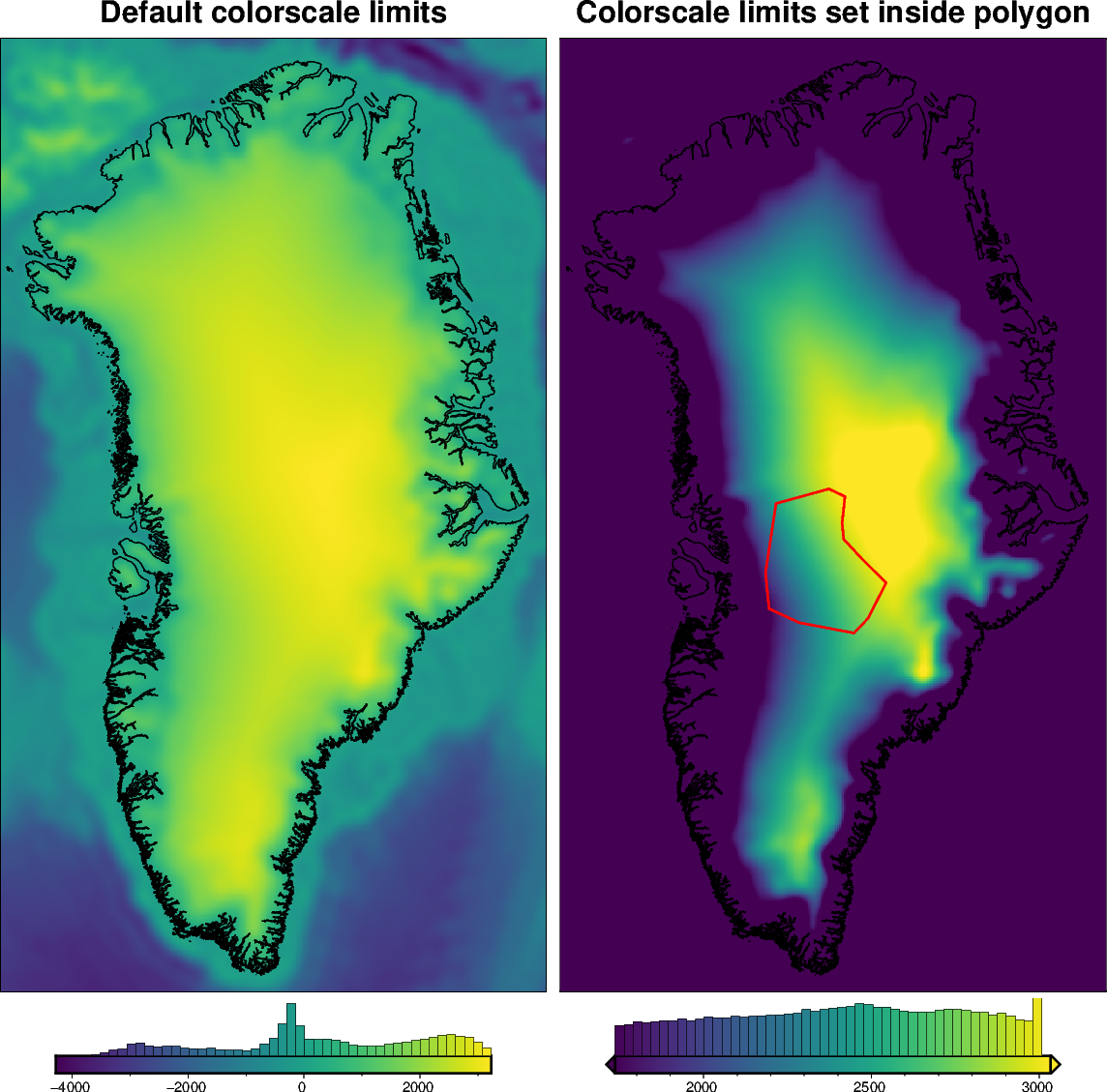

The shapefile can also be passed through any of the plotting functions to the set_cmap function, to create a colormap based on the values only within the shapefile. This is useful of extreme values outside your area of interest are skewing your colorscale.

[14]:

# plot the grid with default colorscale limits
fig = ptk.plot_grid(
    grid,
    hist=True,
    title="Default colorscale limits",
    fig_height=25,
    coast=True,
)

# plot the grid again with colorscale limits set to min and max within the polygon
fig = ptk.plot_grid(
    grid,
    hist=True,
    shapefile=shapefile,
    coast=True,
    fig=fig,
    origin_shift="x",
    title="Colorscale limits set inside polygon",
)
fig.plot(
    shapefile,
    pen="1.5p,red",
)
fig.show(dpi=100)
../_images/gallery_masking_and_subsetting_data_18_0.png

Extract points within shapefile#

Given a pandas DataFrame of point data, we can extract just the points which are inside of the shapefile.

[15]:

# get a shapefile of Antarctica's Getz Ice Shelf drainage basin
fname = ptk.fetch.antarctic_boundaries(version="Basins_Antarctica")
ice_boundaries = gpd.read_file(fname)
getz_basin = ice_boundaries[ice_boundaries.NAME == "Getz"]
getz_basin

[15]:
NAME Regions Subregions TYPE Asso_Shelf geometry
145 Getz West F-G GR Getz POLYGON ((-1126366.826 -1113537.613, -1126366....
[16]:

# get some Moho elevation points for Antarctica
df = ptk.fetch.moho(version="an-2015-points")

# subset points inside the Getz basin
getz_df = ptk.points_inside_shapefile(df, getz_basin, epsg="3031")
getz_df

[16]:
Name lon lat crustal_thickness moho_elevation Sources x y geometry
162 ST09 -128.4734 -76.5309 31740.0 -29500.0 9 -1.150824e+06 -914534.401027 POINT (-1150823.575 -914534.401)
163 ST10 -129.7489 -75.8143 29830.0 -28100.0 9 -1.190889e+06 -990413.595610 POINT (-1190889.417 -990413.596)
[17]:

fig = ptk.basemap(
    region=ptk.alter_region(ptk.regions.getz_ice_shelf, zoom=-500e3),
    coast=True,
    inset=True,
    points=df,
    points_fill="moho_elevation",
    points_style="c.6c",
    points_pen=".2p,black",
    epsg="3031",
    title="All Moho points",
    imagery_basemap=True,
)

fig = ptk.basemap(
    coast=True,
    inset=True,
    points=getz_df,
    points_fill="moho_elevation",
    points_style="c.6c",
    points_pen=".2p,black",
    fig=fig,
    origin_shift="x",
    epsg="3031",
    title="Moho points inside shapefile",
    imagery_basemap=True,
)

fig.plot(
    getz_basin,
    pen="1.5p,red",
)

fig.show(dpi=100)
../_images/gallery_masking_and_subsetting_data_22_0.png

Make custom shapefile in QGIS#

QGIS, especially with the Quantarctica and QGreenland packages, is an easy way to interactively make a custom shapefile. This can then be used with polartoolkit to sample data along the file.

To make the shapefile in QGIS:

  • Layer -> Create Layer -> New Shapefile Layer

  • For Geometry Type, select Polygon

  • Select the appropriate EPSG coordinate reference system

  • Save to the same directory as your python file you want to work with.
